Product Introduction
CCTR-824
Mini DIY No Installation 3 Years Long Life Working Time Asset GPS Trackers with Low Self-discharging Li Battery
Key Specifications/Special Features:
- 3 years working time (Every day 24 hours locate once)
- Special for vehicle / machine / instrument rent tracking
- Light sensor for falling or removal alarm
- DIY no installation (Wireless / only battery power supply)

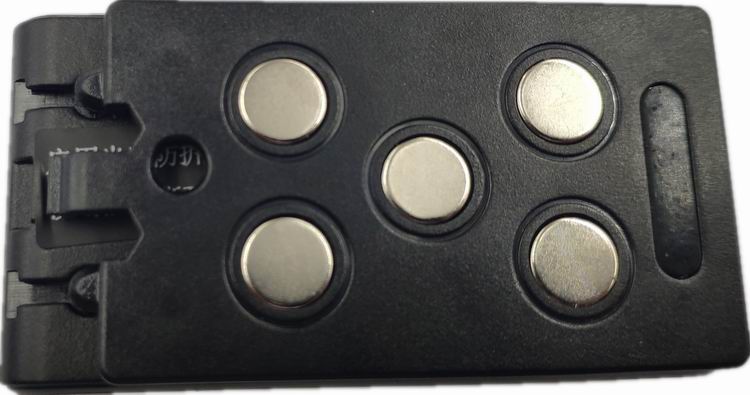

- Easy adsorbed on the metal with its strong magnet pins
- Auto ON/OFF & locate interval time can be changed by user SMS
- Extra low standby (sleep) current (Lower than 2 uA)
- High capacity Li battery (4500mAH/3V, 3 x CR123A)
- Low self-discharging Li battery (3 x CR123A , 2%/Year)
- Device can not be detected by instrument (Normally sleep)
- Auto download & configure APN & GPRS, Also can be set by SMS
- Multi working & report mode can be controlled by SMS
- Universal 4 band module & GPS module
- A-GPS (GSM Network Auxiliary Locate) make fast locate
- GSM and GPS antenna are embedded in the tracker
- PC or mobile phone all can be used to check location or tracking
- Upload web or IP can be set by SMS
- Uploading tracking is controlled by timing
- Open GPRS protocol to client for adding protocol to platform
- Visit website can track the car or display the history tracking
- Platform support iPhone & Android App locate
- History tracking can be saved on server over 3-6 months
- Life time free platform service charge (Our HK Server)
- Easy to use for tracking the rent asset, equipment, machine, vehicle etc.
Electronic Specifications:
- Normal Operation Temperature: -20C to +55C
- Restricted Operation Temperature: -35C to +70C
- Storage temperature: -40C to +80C
- GSM Frequency: 850/900/1800/1900 MHz
- GSM & GPS Antenna: Built-in
- GPS Channels: 32
- Locate Accuracy: 5~20m
- GPS Start Time (open sky): Hot Start : 1 sec, Cold Start : 36sec
- Sleep Current: <2 uA
- Locating Current: <100mA
- Charge Voltage: one time battery, can not charge
- Battery: 4500mAH (CR123A x 3)
Primary Competitive Advantages:
- 3 years working time (Every day 24 hours locate once)
- Special for vehicle / machine / instrument rent tracking
- Light sensor for falling or removal alarm
- DIY no installation (Wireless / only battery power supply)
- Easy adsorbed on the metal with its strong magnet pins
- High capacity Li battery (4500mAH/3V, 3 x CR123A)
- Device can not be detected by instrument (Normally sleep)
- Auto download & configure APN & GPRS, Also can be set by SMS
- GSM and GPS antenna are embedded in the tracker
- PC or mobile phone all can be used to check location or tracking
- Upload web or IP can be set by SMS
- Life time free platform service charge (Our HK Server)
Package list
1 Main unit , CR123A battery X 3, Strong Magnet Cover (Optional), 1 manual Card.
